Stepping into `{ggplot2}` internals with `{ggtrace}`

June Choe

University of Pennsylvania

@yjunechoe

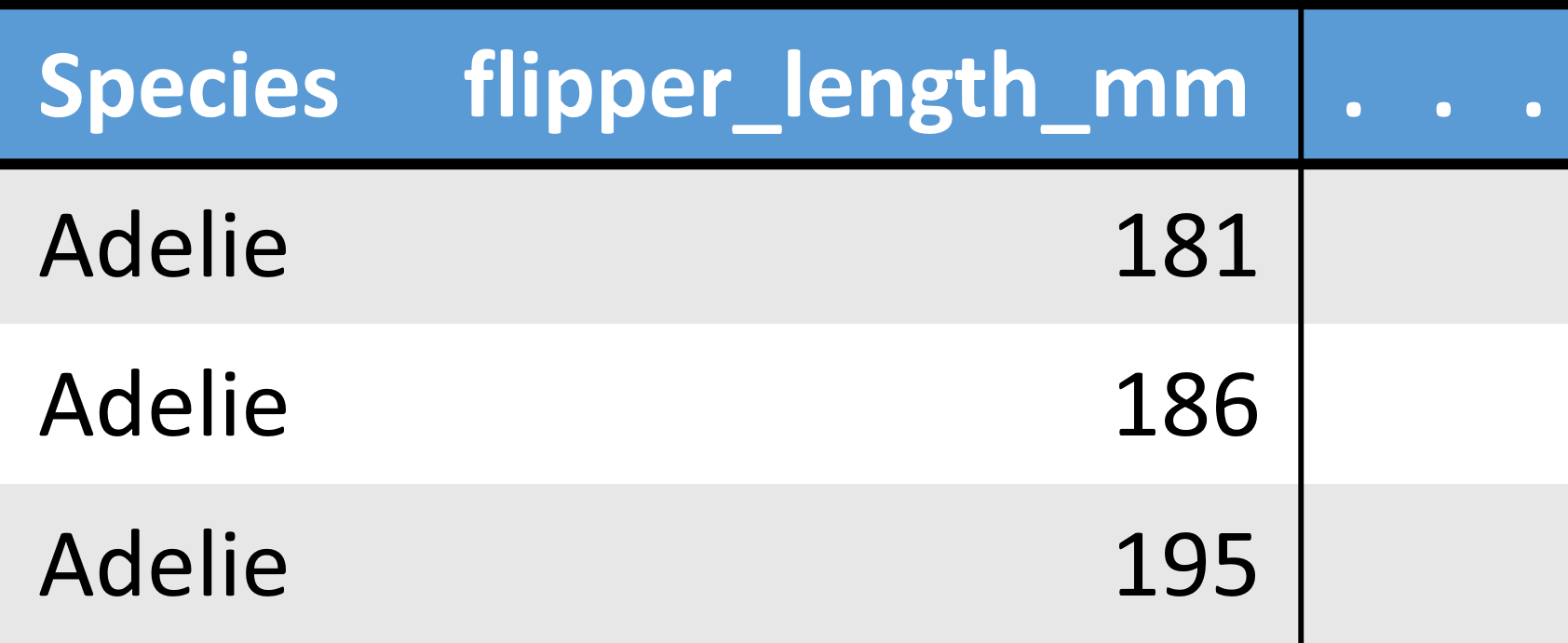

Penguin flipper lengths

User-facing code vs. Internals

“outliers”

“quartiles”

User-facing code vs. Internals

“outliers”

“quartiles”

`{ggtrace}`

Let’s interact with ggplot internals!

Outline

Introduction to ggplot internals

Just knowing {dplyr} can get you very far!

A showcase of {ggtrace} features

Gives users finer control over the plots they make
Helps developers debug custom internal functions

{ggplot2} internals

Thinking like ggplot internals

outliers whisker 3rd quartile median 1st quartile whisker outliers

Stat

Thinking like ggplot internals

outliers whisker 3rd quartile median 1st quartile whisker outliers

Stat

Geom

`{ggplot2}` Stat and Geom methods

Statistical transformation (compute)

Stat$compute_layer()

Stat$compute_panel()

Stat$compute_group()

Geometric transformation (draw)

Geom$draw_layer()

Geom$draw_panel()

Geom$draw_group()

`{ggplot2}` Stat and Geom methods

Statistical transformation (compute)

Stat$compute_layer()

Stat$compute_panel()

Stat$compute_group()

Geometric transformation (draw)

Geom$draw_layer()

Geom$draw_panel()

Geom$draw_group()

`{ggplot2}` Stat and Geom methods

Statistical transformation (compute)

Stat$compute_layer()

Stat$compute_panel()

Stat$compute_group()

Geometric transformation (draw)

Geom$draw_layer()

Geom$draw_panel()

Geom$draw_group()

`{ggplot2}` Stat and Geom methods

Statistical transformation (compute)

Stat$compute_layer()

Stat$compute_panel()

Stat$compute_group()

Geometric transformation (draw)

Geom$draw_layer()

Geom$draw_panel()

Geom$draw_group()

`{ggplot2}` Stat and Geom methods

Statistical transformation (compute)

Stat$compute_layer()

Stat$compute_panel()

Stat$compute_group()

Geometric transformation (draw)

Geom$draw_layer()

Geom$draw_panel()

Geom$draw_group()

`{ggplot2}` Stat and Geom methods

Statistical transformation (compute)

Stat$compute_layer()

Stat$compute_panel()

Stat$compute_group()

Geometric transformation (draw)

Geom$draw_layer()

Geom$draw_panel()

Geom$draw_group()

`{ggplot2}` Stat and Geom methods

Statistical transformation (compute)

Stat$compute_layer()

Stat$compute_panel()

Stat$compute_group()

Geometric transformation (draw)

Geom$draw_layer()

Geom$draw_panel()

Geom$draw_group()

`{ggplot2}` Stat and Geom methods

Statistical transformation (compute)

Stat$compute_layer()

Stat$compute_panel()

Stat$compute_group()

Geometric transformation (draw)

Geom$draw_layer()

Geom$draw_panel()

Geom$draw_group()

`{ggplot2}` Stat and Geom methods

Statistical transformation (compute)

Stat$compute_layer()

Stat$compute_panel()

Stat$compute_group()

Geometric transformation (draw)

Geom$draw_layer()

Geom$draw_panel()

Geom$draw_group()

`{ggplot2}` Stat and Geom methods

Statistical transformation (compute)

Stat$compute_layer()

Stat$compute_panel()

Stat$compute_group()

Geometric transformation (draw)

Geom$draw_layer()

Geom$draw_panel()

Geom$draw_group()

`{ggplot2}` Stat and Geom methods

Statistical transformation (compute)

Stat$compute_layer()

Stat$compute_panel()

Stat$compute_group()

Geometric transformation (draw)

Geom$draw_layer()

Geom$draw_panel()

Geom$draw_group()

`{dplyr}` all the way down

ggplot_output <- data_input %>%

  ... # aesthetic mappings, x-y scale transformations, etc.

  group_by(layer) %>%
    group_by(panel) %>%
      group_by(group) %>%
        summarize( ... ) %>%

  ... # constructing plot layout with {grid} and {gtable}, etc.

`{dplyr}` all the way down

ggplot_output <- data_input %>%

  ... # aesthetic mappings, x-y scale transformations, etc.

  group_by(layer) %>%
    mutate( ... ) %>%
    group_by(panel) %>%
      mutate( ... ) %>%
      group_by(group) %>%
        mutate( ... ) %>%
        summarize( ... ) %>%
        mutate( ... ) %>%
      mutate( ... ) %>%
    mutate( ... ) %>%

  ... # constructing plot layout with {grid} and {gtable}, etc.

`{dplyr}` all the way down

ggplot_output <- data_input %>%

  ... # aesthetic mappings, x-y scale transformations, etc.

  group_by(layer) %>%
    mutate( ... ) %>%
    group_by(panel) %>%
      mutate( ... ) %>%
      group_by(group) %>%
        mutate( ... ) %>%
        summarize( ... ) %>%
        mutate( ... ) %>%
      mutate( ... ) %>%
    mutate( ... ) %>%

  ... # constructing plot layout with {grid} and {gtable}, etc.

_layer() functions called once per layer

`{dplyr}` all the way down

ggplot_output <- data_input %>%

  ... # aesthetic mappings, x-y scale transformations, etc.

  group_by(layer) %>%
    mutate( ... ) %>%
    group_by(panel) %>%
      mutate( ... ) %>%
      group_by(group) %>%
        mutate( ... ) %>%
        summarize( ... ) %>%
        mutate( ... ) %>%
      mutate( ... ) %>%
    mutate( ... ) %>%

  ... # constructing plot layout with {grid} and {gtable}, etc.

_panel() functions called once per panel (a.k.a. “facet”)

`{dplyr}` all the way down

ggplot_output <- data_input %>%

  ... # aesthetic mappings, x-y scale transformations, etc.

  group_by(layer) %>%
    mutate( ... ) %>%
    group_by(panel) %>%
      mutate( ... ) %>%
      group_by(group) %>%
        mutate( ... ) %>%
        summarize( ... ) %>%
        mutate( ... ) %>%
      mutate( ... ) %>%
    mutate( ... ) %>%

  ... # constructing plot layout with {grid} and {gtable}, etc.

_group() functions called once per group

Motivating idea

ggplot_output <- data_input %>%

  ... # aesthetic mappings, x-y scale transformations, etc.

  group_by(layer) %>%
    mutate( ... ) %>%
    group_by(panel) %>%
      mutate( ... ) %>%
      group_by(group) %>%
        mutate( ... ) %>%
        summarize( ... ) %>%
        mutate( ... ) %>%
      mutate( ... ) %>%
    mutate( ... ) %>%

  ... # constructing plot layout with {grid} and {gtable}, etc.

What might we want to do with this beast of a pipeline?

Motivating idea

ggplot_output <- data_input %>%

  ... # aesthetic mappings, x-y scale transformations, etc.

  group_by(layer) %>%
    mutate( ... ) %>%
    group_by(panel) %>%
      mutate( ... ) %>%
      # <-- What does the data for 2nd layer, 3rd panel look like at this point?
      group_by(group) %>%
        mutate( ... ) %>%
        summarize( ... ) %>%
        mutate( ... ) %>%
      mutate( ... ) %>%
    mutate( ... ) %>%

  ... # constructing plot layout with {grid} and {gtable}, etc.

Motivating idea

ggplot_output <- data_input %>%

  ... # aesthetic mappings, x-y scale transformations, etc.

  group_by(layer) %>%
    mutate( ... ) %>%
    group_by(panel) %>%
      mutate( ... ) %>%
      group_by(group) %>%
        mutate( ... ) %>%
        summarize( ... ) %>%
        my_fun() %>% # <-- What consequence does this have on the pipeline?
        mutate( ... ) %>%
      mutate( ... ) %>%
    mutate( ... ) %>%

  ... # constructing plot layout with {grid} and {gtable}, etc.

Inaccessibility of ggproto methods

They are essentially functions, but look weird:

class(StatBoxplot$compute_group)

[1] "ggproto_method"

typeof(StatBoxplot$compute_group)

[1] "closure"

You can’t do any useful things with them interactively:

formals(StatBoxplot$compute_group)

$...

body(StatBoxplot$compute_group)

f(...)

Familiar debugging tools (ex: debug()) fail out of the box

Introducing {ggtrace}

Introducing `{ggtrace}`

Toolkit to Inspect, Capture, and Highjack the internals

Workflow functions ggtrace_{action}_{value}():

x: The ggplot object
method: The ggproto method
cond: When to interact with the method¹

“While rendering x, interact with method when cond is met”

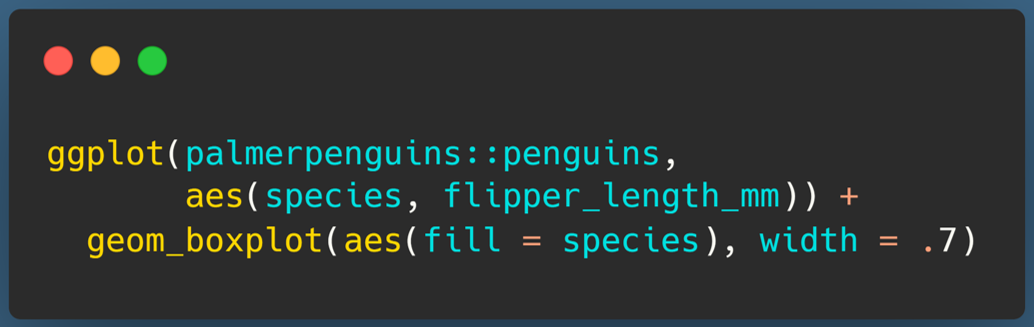

Our boxplot

p <- palmerpenguins::penguins %>%
  filter(!is.na(flipper_length_mm)) %>%
  ggplot(aes(x = species, y = flipper_length_mm)) +
  geom_boxplot(aes(fill = species), width = .7)
p

Inspect workflow

Inspect `compute_layer()`

compute_layer_input <- ggtrace_inspect_args(x = p, method = Stat$compute_layer, cond = 1)

Inspect `compute_layer()`

compute_layer_input <- ggtrace_inspect_args(x = p, method = Stat$compute_layer)

Inspect `compute_layer()`

compute_layer_input <- ggtrace_inspect_args(x = p, method = Stat$compute_layer)
names(compute_layer_input)

[1] "self"   "data"   "params" "layout"

compute_layer_input$params

$na.rm
[1] FALSE

$orientation
[1] NA

$width
[1] 0.7

$flipped_aes
[1] FALSE

Inspect `compute_layer()`

compute_layer_input$data %>% tibble() %>% print(n = 3)

# A tibble: 342 × 5
  fill   x              y PANEL group
  <fct>  <mppd_dsc> <dbl> <fct> <int>
1 Adelie 1            181 1         1
2 Adelie 1            186 1         1
3 Adelie 1            195 1         1
# … with 339 more rows

compute_layer_input$data %>% count(PANEL, group)

  PANEL group   n
1     1     1 151
2     1     2  68
3     1     3 123

ggtrace_inspect_return(x = p, method = Stat$compute_layer)

  ymin lower middle upper ymax outliers notchupper notchlower x width relvarwidth flipped_aes      fill PANEL group
1  174   186    190   195  208 172, 210   191.1572   188.8428 1   0.7   12.288206       FALSE    Adelie     1     1
2  178   191    196   201  212            197.9160   194.0840 2   0.7    8.246211       FALSE Chinstrap     1     2
3  203   212    216   221  231            217.2822   214.7178 3   0.7   11.090537       FALSE    Gentoo     1     3

`Stat` split-apply-combine design

ggtrace_inspect_n(p, Stat$compute_layer)

[1] 1

ggtrace_inspect_n(p, Stat$compute_panel)

[1] 1

ggtrace_inspect_n(p, StatBoxplot$compute_group)

[1] 3

ggtrace::get_method_inheritance( geom_boxplot()$stat )

$Stat
[1] "aesthetics"    "compute_layer" "compute_panel" "default_aes"   "finish_layer"  "optional_aes"  "parameters"    "retransform"

$StatBoxplot
[1] "compute_group"   "extra_params"    "non_missing_aes" "required_aes"    "setup_data"      "setup_params"

`Stat` split-apply-combine inputs

ggtrace_inspect_args(p, Stat$compute_layer)$data %>% head(2)

    fill x   y PANEL group
1 Adelie 1 181     1     1
2 Adelie 1 186     1     1

ggtrace_inspect_args(p, Stat$compute_panel)$data # same as `compute_layer()`

ggtrace_inspect_args(p, StatBoxplot$compute_group, 1)$data %>% head(2)

    fill x   y PANEL group
1 Adelie 1 181     1     1
2 Adelie 1 186     1     1

ggtrace_inspect_args(p, StatBoxplot$compute_group, 2)$data %>% head(2)

         fill x   y PANEL group
275 Chinstrap 2 192     1     2
276 Chinstrap 2 196     1     2

ggtrace_inspect_args(p, StatBoxplot$compute_group, 3)$data %>% head(2)

      fill x   y PANEL group
152 Gentoo 3 211     1     3
153 Gentoo 3 230     1     3

`Stat` split-apply-combine outputs

ggtrace_inspect_return(p, StatBoxplot$compute_group, 1)

  ymin lower middle upper ymax outliers notchupper notchlower x width relvarwidth flipped_aes
1  174   186    190   195  208 172, 210   191.1572   188.8428 1   0.7    12.28821       FALSE

ggtrace_inspect_return(p, StatBoxplot$compute_group, 2)

  ymin lower middle upper ymax outliers notchupper notchlower x width relvarwidth flipped_aes
1  178   191    196   201  212             197.916    194.084 2   0.7    8.246211       FALSE

ggtrace_inspect_return(p, StatBoxplot$compute_group, 3)

  ymin lower middle upper ymax outliers notchupper notchlower x width relvarwidth flipped_aes
1  203   212    216   221  231            217.2822   214.7178 3   0.7    11.09054       FALSE

ggtrace_inspect_return(p, Stat$compute_panel)

  ymin lower middle upper ymax outliers notchupper notchlower x width relvarwidth flipped_aes      fill PANEL group
1  174   186    190   195  208 172, 210   191.1572   188.8428 1   0.7   12.288206       FALSE    Adelie     1     1
2  178   191    196   201  212            197.9160   194.0840 2   0.7    8.246211       FALSE Chinstrap     1     2
3  203   212    216   221  231            217.2822   214.7178 3   0.7   11.090537       FALSE    Gentoo     1     3

ggtrace_inspect_return(p, Stat$compute_layer)  # same as `compute_panel()`

Capture workflow

Capture `compute_group()`

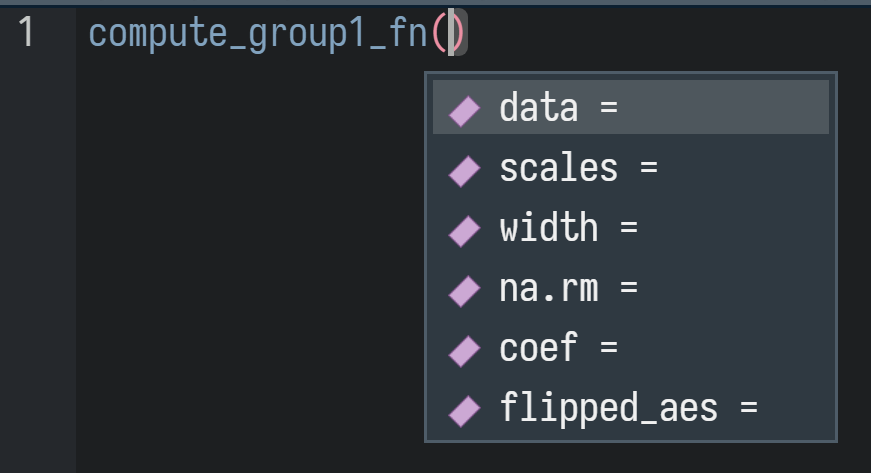

compute_group1_fn <- ggtrace_capture_fn(
  x = p, method = StatBoxplot$compute_group, cond = 1
)

compute_group1_fn()

  ymin lower middle upper ymax outliers notchupper notchlower x width relvarwidth flipped_aes
1  174   186    190   195  208 172, 210   191.1572   188.8428 1   0.7    12.28821       FALSE

compute_group1_fn(coef = 0.8)$outliers

[[1]]
 [1] 174 172 178 178 205 208 178 203 176 210

# v3.3.0 `geom_boxplot(orientation = "y")`
compute_group1_fn(flipped_aes = TRUE) %>% names()

 [1] "xmin"        "xlower"      "xmiddle"
 [4] "xupper"      "xmax"        "outliers"
 [7] "notchupper"  "notchlower"  "y"
[10] "width"       "relvarwidth" "flipped_aes"

Highjack workflow

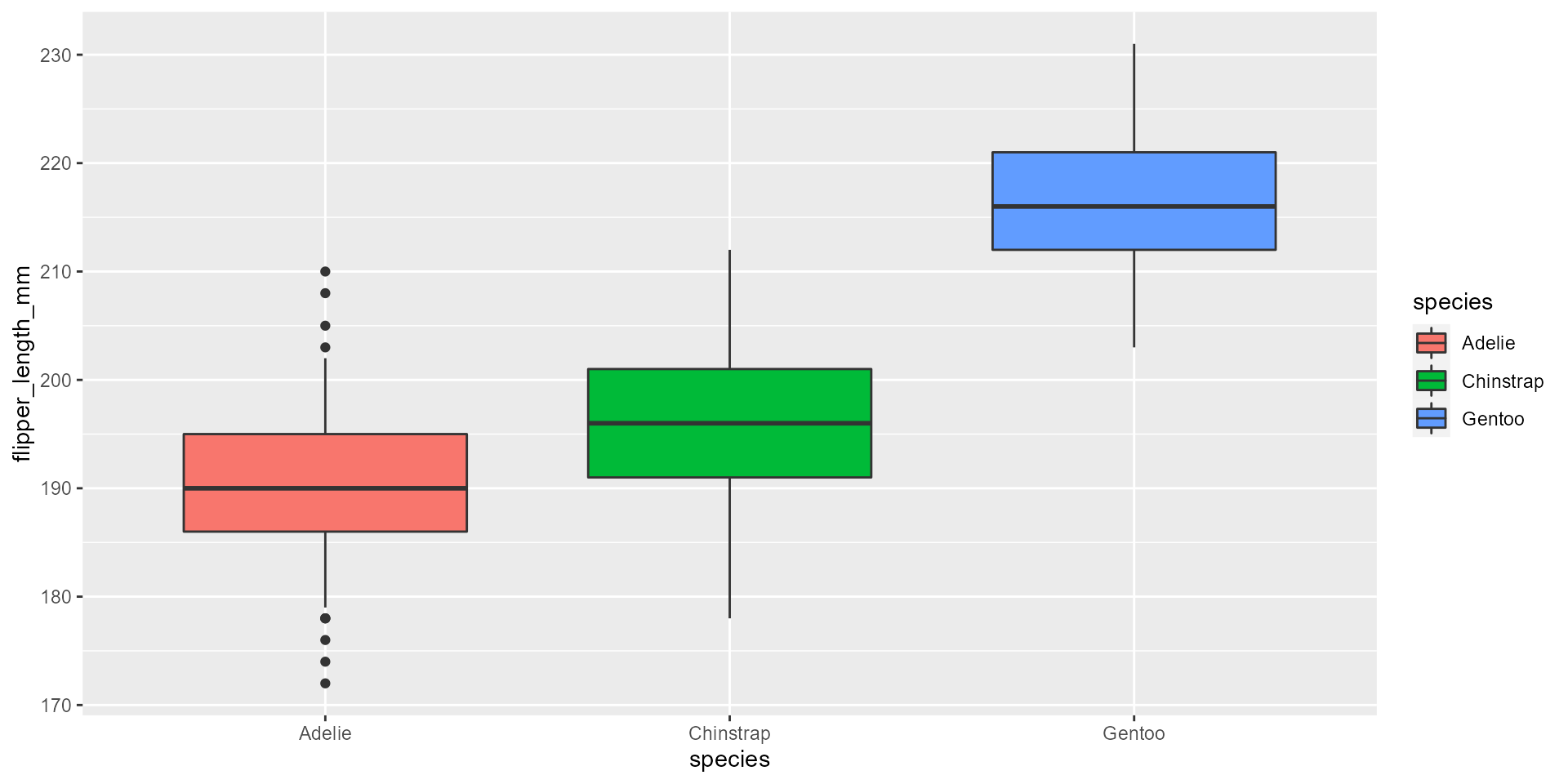

Highjack args

ggtrace_highjack_args(
  x = p, method = StatBoxplot$compute_group, cond = 1,
  values = list(coef = 0.8) # list of new argument values
)

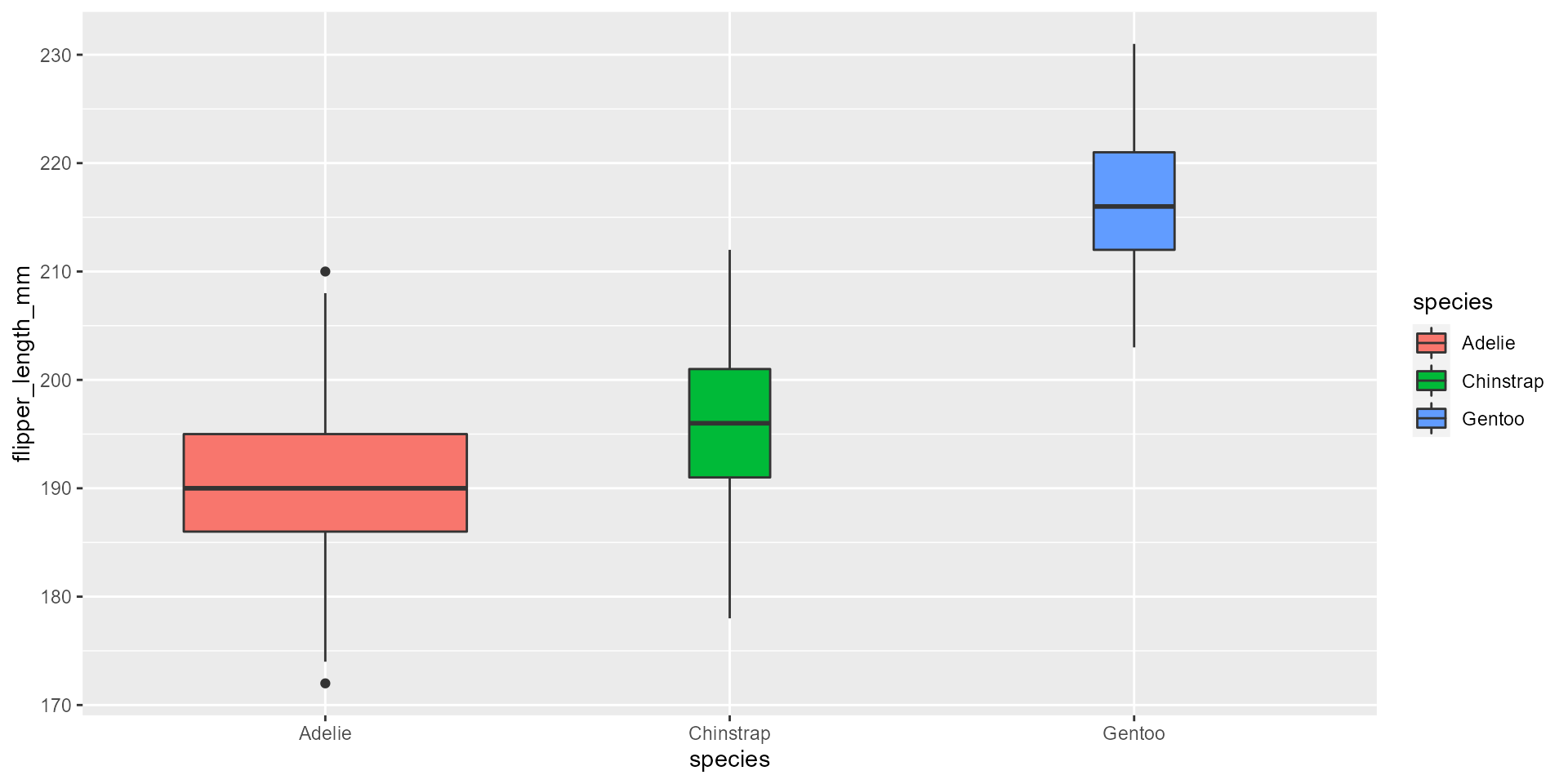

Highjack args (multi-cond)

ggtrace_highjack_args(
  p, StatBoxplot$compute_group, cond = c(2, 3),
  values = list(width = .2)
)

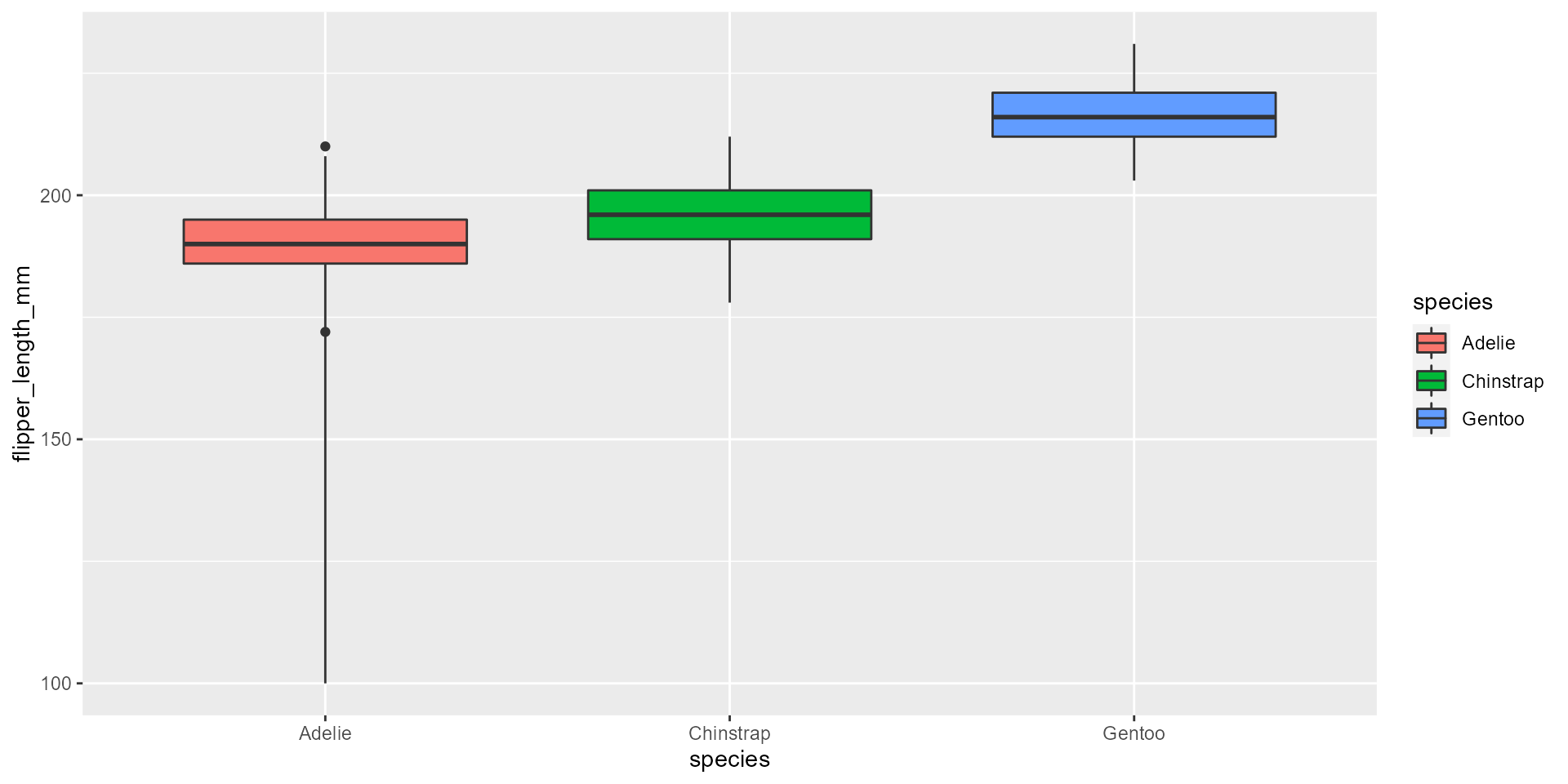

Highjack return

modified_compute_group1 <- ggtrace_inspect_return(p, StatBoxplot$compute_group, 1) %>%
  mutate(ymin = 100)

ggtrace_highjack_return(p, StatBoxplot$compute_group, 1,
  value = modified_compute_group1
)

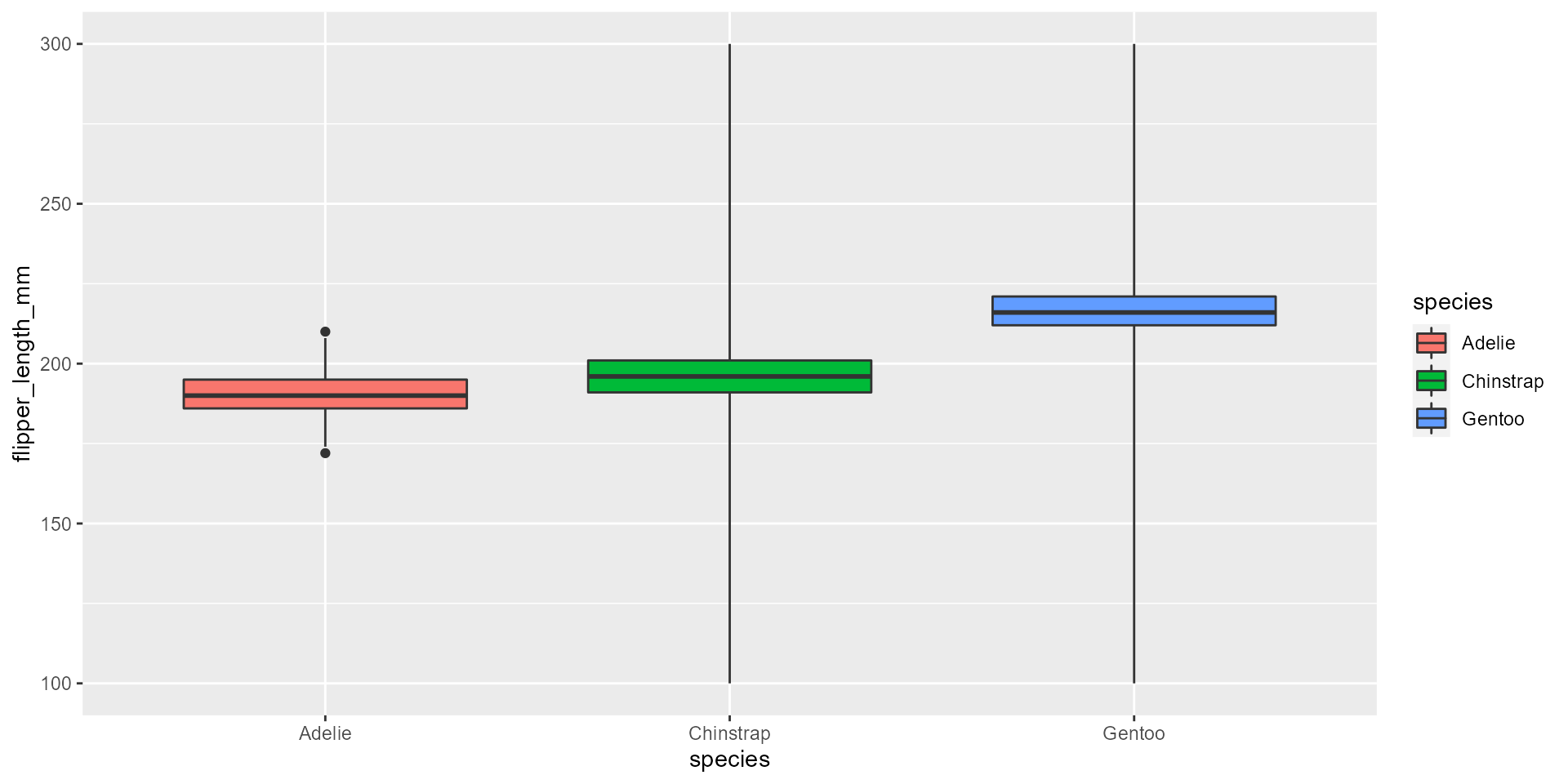

Highjack return - `returnValue()`

ggtrace_highjack_return(p, StatBoxplot$compute_group,
  cond = c(2, 3),
  value = quote({
    returnValue() %>% mutate(ymin = 100, ymax = 300)
}))

Inspect `draw_group()`

ggtrace_inspect_args(p, GeomBoxplot$draw_group, 1)$data

     fill ymin lower middle upper ymax outliers notchupper notchlower x flipped_aes PANEL group
1 #F8766D  174   186    190   195  208 172, 210   191.1572   188.8428 1       FALSE     1     1
  ymin_final ymax_final xmin xmax xid newx new_width weight colour size alpha shape linetype
1        172        210 0.65 1.35   1    1       0.7      1 grey20  0.5    NA    19    solid

draw_group1_output <- ggtrace_inspect_return(p, GeomBoxplot$draw_group, 1)

class(draw_group1_output)

[1] "gTree" "grob"  "gDesc"

typeof(draw_group1_output)

[1] "list"

What can we do with these "grob"s?

library(grid)

Highjack `draw_group()`

modified_group1_output <- grid::editGrob(draw_group1_output, gp = grid::gpar(alpha = .5))

Highjack `draw_group()`

modified_group1_output <- grid::editGrob(draw_group1_output, gp = grid::gpar(alpha = .5))
ggtrace_highjack_return(p, GeomBoxplot$draw_group, 1,
  value = modified_group1_output
)

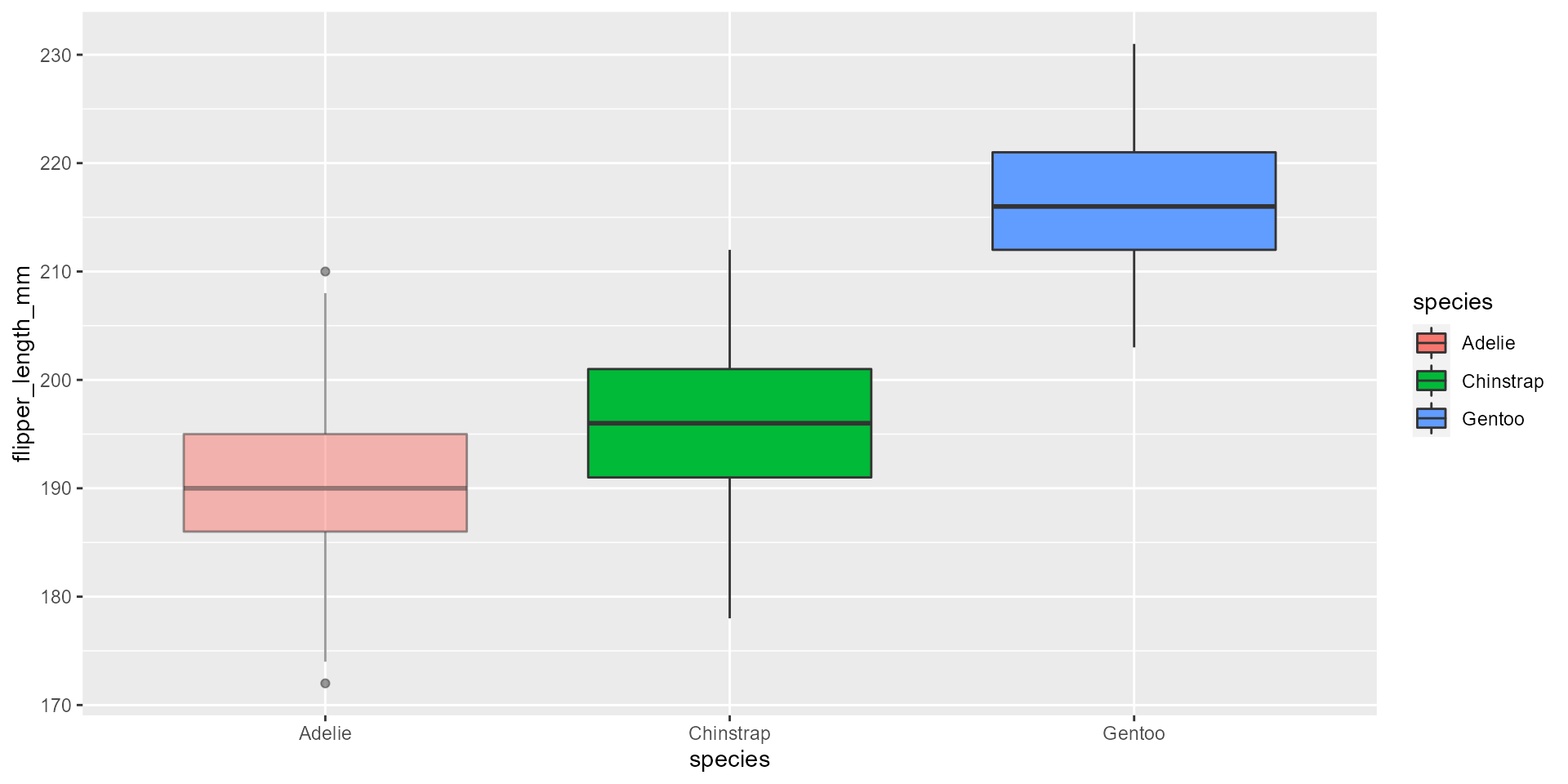

Highjack `draw_group()`

ggtrace_highjack_return(p, GeomBoxplot$draw_group, 1,
  value = quote({
    editGrob(returnValue(), gp = gpar(alpha = .5))
}))

`gTree`s - a collection of `grob`s

draw_group1_output

gTree[geom_boxplot.gTree.2112]

class( draw_group1_output )

[1] "gTree" "grob"  "gDesc"

grid::grid.ls(draw_group1_output)

geom_boxplot.gTree.2112
  geom_point.points.2104
  GRID.segments.2106
  geom_crossbar.gTree.2111
    geom_polygon.polygon.2109
    GRID.segments.2110

draw_group1_output$children

(points[geom_point.points.2104], segments[GRID.segments.2106], gTree[geom_crossbar.gTree.2111])

draw_group1_output$children[[3]]$children

(polygon[geom_polygon.polygon.2109], segments[GRID.segments.2110])

Highjack `draw_group()`

ggtrace_highjack_return(p, GeomBoxplot$draw_group, 1,
  value = quote({
    out <- returnValue()
    out$children[3] <- NULL
    out
}))

Highjack `draw_group()`

ggtrace_highjack_return(p, GeomBoxplot$draw_group, 1,
  value = quote({
    out <- returnValue()
    out$children[[2]] <- editGrob(out$children[[2]], gp = gpar(lty = 2, lwd = 5))
    out
}))

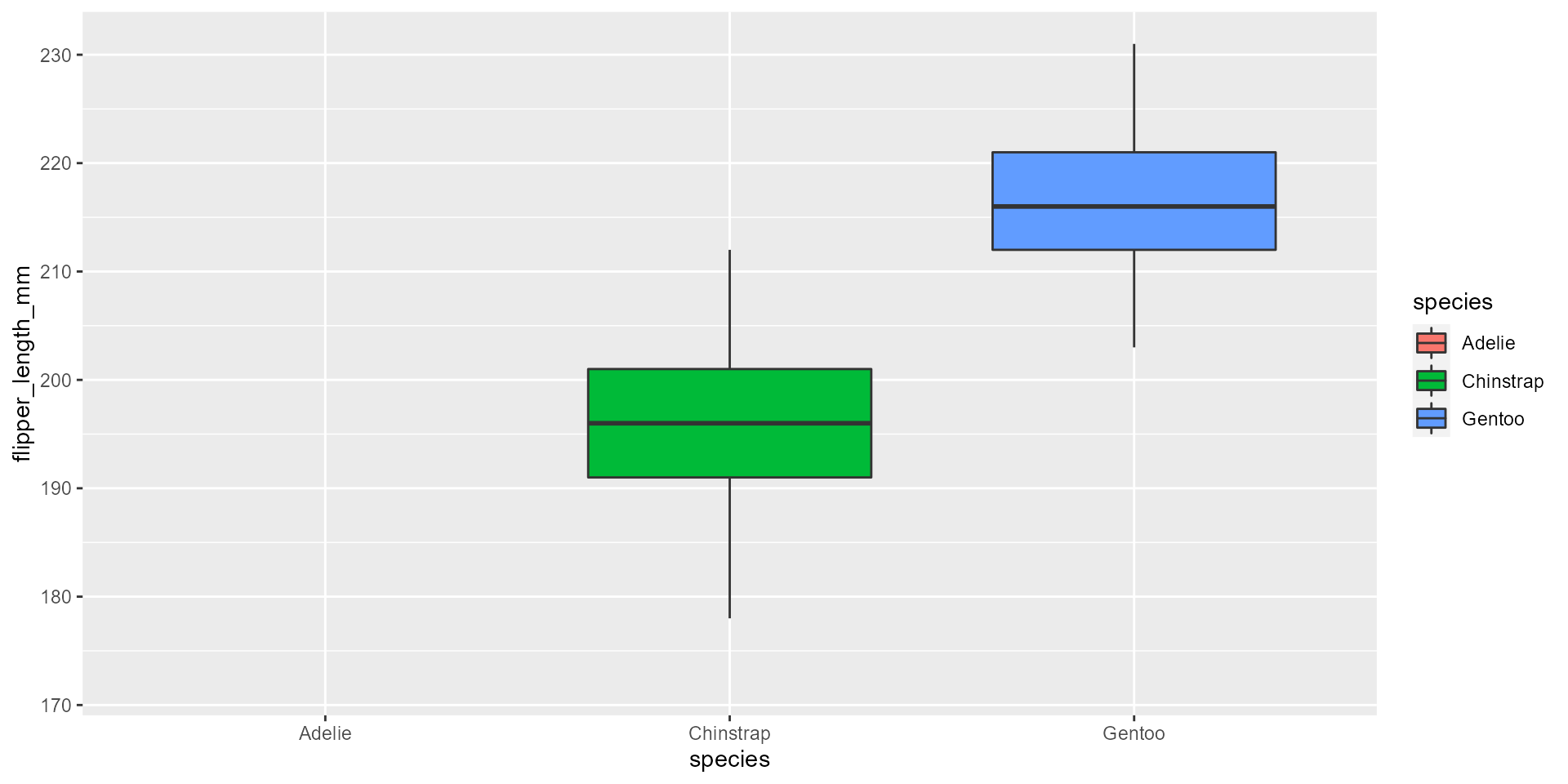

Highjack `draw_group()` - hide

ggtrace_highjack_return(p, GeomBoxplot$draw_group, 1,
  value = ggplot2::zeroGrob()
)

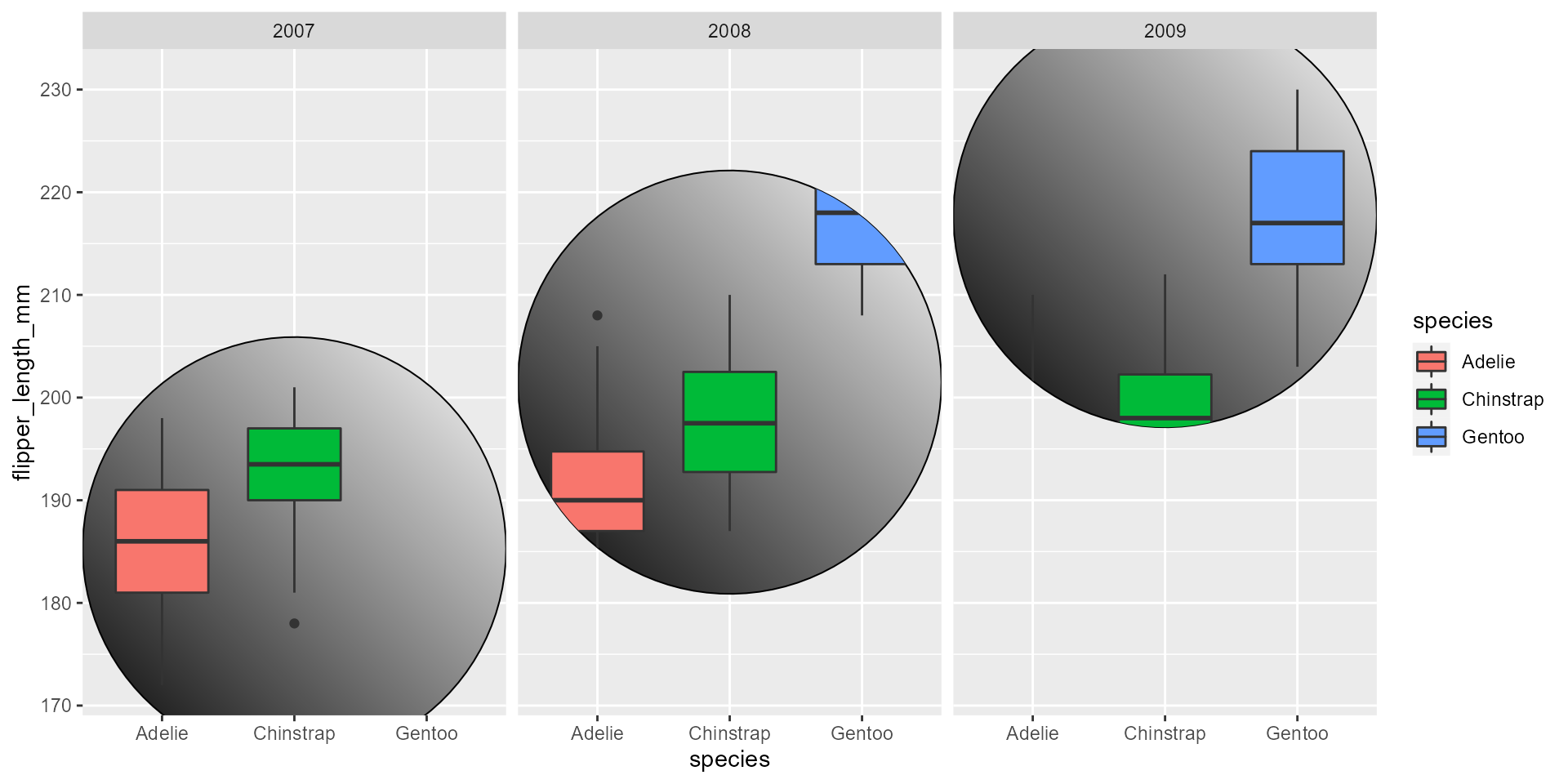

For `{grid}` power users

ggtrace_highjack_return(p + facet_wrap(~ year), Geom$draw_panel, cond = TRUE,
  value = quote({
    y_pos <- .25 * ._counter_ #<- internal counter tracking nth time the method is called
    grobTree( circleGrob(y = y_pos, gp = gpar(fill = linearGradient())), # R >= 4.1
              editGrob(returnValue(), vp = viewport(clip = circleGrob(y = y_pos))) )  }))

… and much more!

Workflow functions also work for:

Other ggprotos, unexported functions, S3/S4 methods
Functions and methods from extension packages

Beyond workflow functions, {ggtrace} also provides:

Interactive debugging with ggedit() and ggdebug()
Low-level control with ggtrace() and with_ggtrace()

https://yjunechoe.github.io/ggtrace/

Stepping into {ggplot2} internals with {ggtrace}

Penguin flipper lengths

User-facing code vs. Internals

User-facing code vs. Internals

{ggtrace}

Outline

Thinking like ggplot internals

Thinking like ggplot internals

{ggplot2} Stat and Geom methods

{ggplot2} Stat and Geom methods

{ggplot2} Stat and Geom methods

{ggplot2} Stat and Geom methods

{ggplot2} Stat and Geom methods

{ggplot2} Stat and Geom methods

{ggplot2} Stat and Geom methods

{ggplot2} Stat and Geom methods

{ggplot2} Stat and Geom methods

{ggplot2} Stat and Geom methods

{ggplot2} Stat and Geom methods

{dplyr} all the way down

{dplyr} all the way down

{dplyr} all the way down

{dplyr} all the way down

{dplyr} all the way down

Motivating idea

Motivating idea

Motivating idea

Inaccessibility of ggproto methods

Introducing {ggtrace}

Our boxplot

Inspect compute_layer()

Inspect compute_layer()

Inspect compute_layer()

Inspect compute_layer()

Stat split-apply-combine design

Stat split-apply-combine inputs

Stat split-apply-combine outputs

Capture compute_group()

Highjack args

Highjack args (multi-cond)

Highjack return

Highjack return - returnValue()

Inspect draw_group()

Highjack draw_group()

Highjack draw_group()

Highjack draw_group()

gTrees - a collection of grobs

Highjack draw_group()

Highjack draw_group()

Highjack draw_group() - hide

For {grid} power users

… and much more!

Stepping into `{ggplot2}` internals with `{ggtrace}`

`{ggtrace}`

`{ggplot2}` Stat and Geom methods

`{ggplot2}` Stat and Geom methods

`{ggplot2}` Stat and Geom methods

`{ggplot2}` Stat and Geom methods

`{ggplot2}` Stat and Geom methods

`{ggplot2}` Stat and Geom methods

`{ggplot2}` Stat and Geom methods

`{ggplot2}` Stat and Geom methods

`{ggplot2}` Stat and Geom methods

`{ggplot2}` Stat and Geom methods

`{ggplot2}` Stat and Geom methods

`{dplyr}` all the way down

`{dplyr}` all the way down

`{dplyr}` all the way down

`{dplyr}` all the way down

`{dplyr}` all the way down

Introducing `{ggtrace}`

Inspect `compute_layer()`

Inspect `compute_layer()`

Inspect `compute_layer()`

Inspect `compute_layer()`

`Stat` split-apply-combine design

`Stat` split-apply-combine inputs

`Stat` split-apply-combine outputs

Capture `compute_group()`

Highjack return - `returnValue()`

Inspect `draw_group()`

Highjack `draw_group()`

Highjack `draw_group()`

Highjack `draw_group()`

`gTree`s - a collection of `grob`s

Highjack `draw_group()`

Highjack `draw_group()`

Highjack `draw_group()` - hide

For `{grid}` power users
